Главная страница /Продукция/Машина упаковки волдыря/Commodity AC-350 Automatic for High Frequency Gas Lighter Package Blister Forming Paper Card Packing Hot Seal Packaging Machine

Commodity AC-350 Automatic for High Frequency Gas Lighter Package Blister Forming Paper Card Packing Hot Seal Packaging Machine

1 Set
MOQ
Commodity AC-350 Automatic for High Frequency Gas Lighter Package Blister Forming Paper Card Packing Hot Seal Packaging Machine
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Type: Blister Packaging Machine
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor
Condition: New
Application: Commodity, Machinery & Hardware
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/220V
Dimension(L*W*H): 3500x1700x1850mm
Weight: 1300kgs
Warranty: 1 Year
Key Selling Points: Automatic
production speed: 10-20cycle/min
stroke range: 30mm-200mm
max.forming depth: 40mm
max.forming area: 300x160mm
forming heating power: 6kw
sealing power: 2.5kw
total power: 12kw
air pressure: 0.5-0.8Mpa
sir consumption: ≥0.5L
After Warranty Service: Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Сертификация: ISO,CE
Основная информация
Сертификация: ISO,CE
Оплата и доставка Условия
Packaging Details: wooden case
Характер продукции

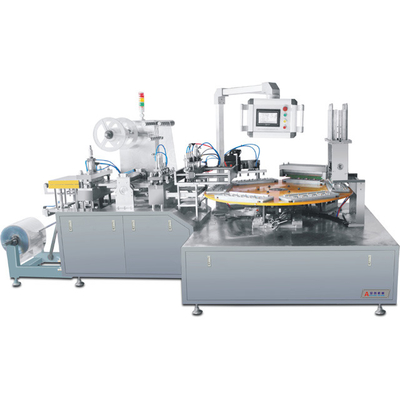

AC-350 High Speed Automatic Blister Paper Card Packing Machine
AC-350 is suitable for half sealing blister paper card package, such as daily commodity ( razor, rubber,nipple,sticky hook),small hardware (battery, electronics, glue), stationery (pencil, eraser, correction fluid, solid glue) and so on.
Product Paramenters
Mode
AC-350
Production speed
15-18 cycles/min
Stroke range
30mm-200mm
Max forming area
320mm*160mm
Max standard forming depth
35mm
Max non-standard forming depth
50mm
Forming heating power
3.5kw(*2)
Heat sealing power
2.5kw
Total power
12kw
Air consumption
consumption ≥0.5 m³/min
Air Pressure
0.5-0.8mpa
Packing material（PVC）(PET)
thickness0.15mm-0.5mm内
Max paper dimension
400mm*180mm*0.5mm
Total Weight
1300kg
Machine dimension(L*W*H)
3300mm*1700mm*1850mm
Production Process
The production process is PVC heating---Blister card forming---servo motor traction---blister card cutting---blister card grab to the rotary plate by manipulator--manual place the product--- paper card lay down ----blister and paper card sealing----product output
(Optional device: euro-hole machine, labelling machine,ink-jet printer)
machine real shot as below:
-six rotary station -from blister forming to paper -blister heat sealing
The electrical accessories we use are cooperated with many big brand suppliers
Ensure our equipment is more stable and reliable and our efficiency is higher.
Finished Product package as below:
